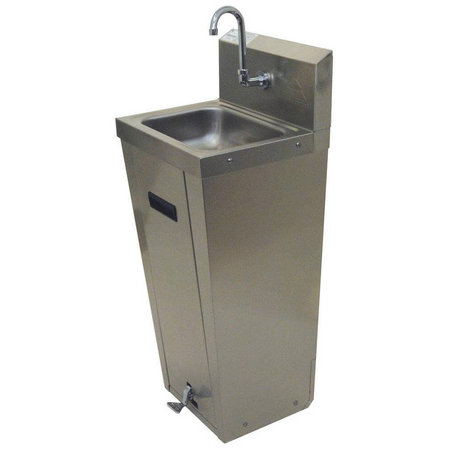

Advance Tabco 7-PS-90, Hand Sink w/ Hands Free Foot Pedal Valve Splash Mount Faucet

Model Specifics: Seamless Deep Drawn Stainless Steel Bowls, Bowls are Sound Deadened, Supplied w/ K-121 Splash Mount Gooseneck Spout, Foot Pedal w/ Built-In Mixing Valve, 3 1/2" Basket Drain, Wall Mounting Bracket (Remote Unit)

Features:

• • One piece Deep Drawn sink bowl design.
  • All sink bowls have a large liberal radii with a minimum dimension of 2" and are rectangular in design for increased capacity.
  • Keyhole wall mount bracket.
  • Stainless steel basket drain 1-1/2" IPS.
  • Flush-to-wall unit.
  • “Hands Free" splash mounted gooseneck faucet furnished with aerator.
  • Foot Pedal Valve for water operation.
  • Easy removable panel to access hidden plumbing.
• Construction:
  • All TIG welded.
  • Welded areas blended to match adjacent surfaces and to a satin finish.
  • Die formed Countertop Edge with a No-Drip offset.
  • One sheet of stainless steel - No Seams.
• Material:
  • Heavy gauge type 304 series stainless steel.
  • Wall mounting bracket is galvanized and of offset design.
  • All fittings are brass / chrome plated unless otherwise indicated.
• Mechanical:
  • Spout supply is 1/2" IPS male thread.
  • Single pedal mixing valve with brass & rough chrome plated with built in check valve. Front operated temperature adjustment.
  • (Contractor on site must connect faucet to foot pedal operated valves.)

Product Dimensions:

• Width (Inches - Front to Back): 17.25 Inches
• Length (Inches - Left to Right): 15.25 Inches
• Height: 42 Inches
