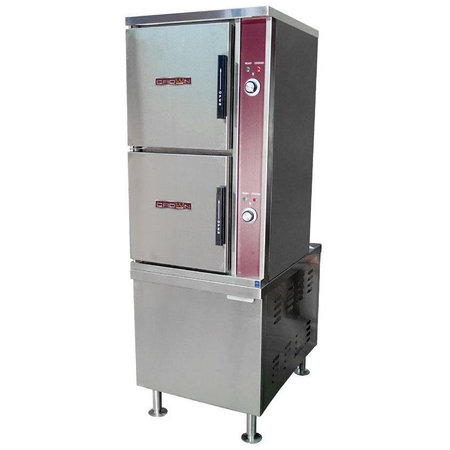

Crown SCX-2-24, 6 Pan Free Standing Steam Coil Convection Steamer w/ Boiler

Features:

• Convection steamer on a modular steam coil boiler base
• Steam coil heated steam boiler operates at 9 - 11 psi with incoming steam pressure at 25 - 45 psi with a flow of 200 lbs per hour.
• Type 304 stainless steel exterior with a #4 satin finish
• Cooking chambers are one piece, all welded, type 316 stainless steel
• 14" W x 21" D x 10.6"H cooking compartment interior
• Chambers are fully insulated and include removable stainless steel pan supports
• Heavy duty door with a stainless steel liner and full perimeter gasket seal
• Outer liner on door is one piece, all welded stainless steel with a positive lock and seal mechanism with spring release
• Stainless steel drip trough integrally connected to the drain collects condensate when the doors are opened
• Steam flow to the cooking chamber is cut off when the door is opened and reactivated when the door is closed
• Standard boiler controls include: Automatic water level control, pressure gauge, water gauge glass, operating pressure control with pressure safety control, safety relief valve, and cathodic protector
• Unit comes standard with a split water line
• 60 minute mechanical timer with alarm
• Cabinet base w/ electric boiler is a full perimeter angled frame with reinforced boiler mountings
• 6" Stainless steel legs with adjustable bullet feet on the front and flanged rear feet for securing to the floor
• ASME code stamped and National Board registered
• c-CSA-us and NSF certified

Product Dimensions:

• Width: 24 Inches
• Depth: 33 Inches
• Height: 55.5 Inches

Crown Warranty:

1 Year Limited
