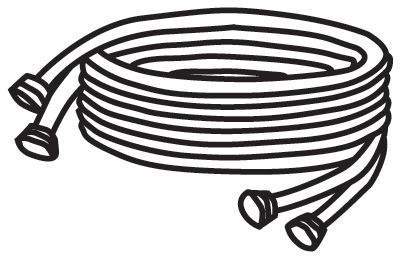

Hoshizaki HS-0252, 55' Tubing Kit Line Set for SRK-8H, SRK-8H3 & SRK-10H Ice Machine Condenser, Brazing Required

Line Set for Hoshizaki Ice Machine Details:

You've got quality pieces to protect, so make sure that you are giving yourself the best chance to make the most out of your various kinds of investments. The way to guarantee that your new air condenser is going to properly protected is to put time and effort into understanding that you are on track to keeping it protected with this Hoshizaki HS-0252 remote condenser and ice maker line set made by Hoshizaki America.

Installed correctly, this remote line set allows for your new purchase to be protected by warranty as well as a guarantee that it will be able to protect you from all that you are looking to do in terms of getting the most quality out of your air condenser and its benefits.

Requirements:

All KMS Serenity Series

• The maximum line set length is 66 feet. No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33 feet above or 10 feet below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20 feet (not to exceed 33 feet), an "S" oil-trap (5/8" OD tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.
• KMS-822, KMS-830 and KMS-2000 are brazed line set connections.

All Flaker Serenity Series

• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8" OD copper tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.

Note: Hoshizaki recommends that all new remote installations should include a new condenser and line set. The use of existing condensers is not recommended/allowed as they may not provide for optimum performance and could affect the refrigeration system warranty coverage.
