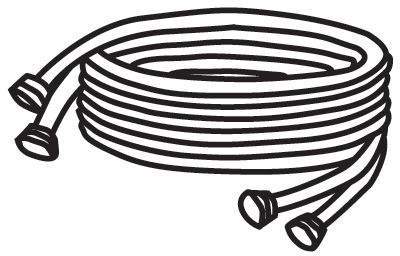

Hoshizaki HS-0251, 35' Tubing Kit Line Set for SRK-8H, SRK-8H3 & SRK-10H Ice Machine Condenser, Brazing Required

Line Set for Hoshizaki Ice Machine Details:

To put your mind at ease, you need to trust that you are choosing the right pieces of supportive equipment to make sure that you are getting the job done correctly. There to help you out with everything that you need to do, the wonderful world surrounding Hoshizaki HS-0251 remote condenser line set is going to help you greatly.

You'll be able to depend on the reliable options that are waiting carefully for you in this line set purchase, and that includes a valid warranty that is going to protect you as you get the most out of your investment purchases.

Requirements:

All KMS Serenity Series

• The maximum line set length is 66 feet. No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33 feet above or 10 feet below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20 feet (not to exceed 33 feet), an "S" oil-trap (5/8" OD tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.
• KMS-822, KMS-830 and KMS-2000 are brazed line set connections.

All Flaker Serenity Series

• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8" OD copper tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.

Note: Hoshizaki recommends that all new remote installations should include a new condenser and line set. The use of existing condensers is not recommended/allowed as they may not provide for optimum performance and could affect the refrigeration system warranty coverage.
